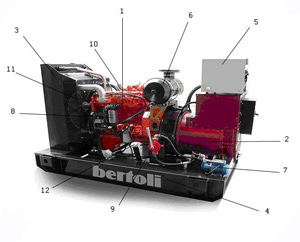

| Otvoreni diesel agregat. |
Prikazan je standardni generator, mora se uzeti u obzir da svaki tip generatora ima malo drugačiji izgled i dimenzije oivisno o veličini i snazi uređaja.
Diesel agregat otvorene verzije općenito se sastoji od slijedećih dijelova : |
| 1. |
Diesel motor |
| 2. |
Generator |
| 3. |
Hladnjak |
| 4. |
Postolje sa integriranim spremnikom goriva |
| 5. |
Automatika sa panelom |
| 6. |
Suhi filter zraka |
| 7. |
Eektro pumpa goriva |
| 8. |
Filter goriva |
| 9. |
Ručna pumpa za gorivo |
| 10 |
Izlaz auspuha |
| 11. |
Ventilator hladnjaka sa zaštitnom mrežom |
| 12. |
Čep spremnika goriva |
|
|
|
.................................................................................................................................................................................................................................................................. |

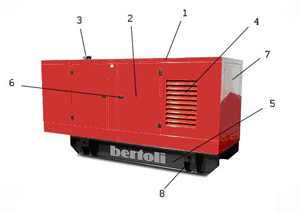

| Zatvoreni diesel agregat: 70 d(B)A |
Uz gore opisane dijelove otvorenog agregata, zvučno izolirani agregat sadrži također slijedeće elemente: |
| 1. |
Kučište agregata |
| 2. |
Servisna vrata |
| 3. |
Auspuh sa klapnom |
| 4. |
Rešetke za ulaz zraka |
| 5. |
Postolje agregata |
| 6. |
Bravica kučišta |
| 7. |
Prostor za integrirani panel |
| 8. |
Otvori za podizanje agregata |
| 9. |
Integrirani panel |
|
|
|
| |
|
|
.................................................................................................................................................................................................................................................................. |
| CURSOR |
The 6 cylinder in line turbocharged and af-tercooled Diesel engines of the CURSOR family are the result of advanced technological solutions that give maximum power performances with reduced displacement and are offered by Iveco Motors in genset duty market engines.
Fully electronic control of the injection system allows a power range from 236 to 500 kW with the low gaseous emission level required by European 2004/26/EC and American EPA CARB directives. |
 |
PERFORMANCES |
| RATINGS |
1500 rpm |
1800 rpm |
| PRIME |
STAND-BY |
PRIME |
STAND-BY |
| Rated output( kWm) |
263 |
290 |
286 |
315 |
|
PRIME POWER
The Prime Power is the maximum power available with varying loads for an unlimited number of hours. The average power output during a 24 h period of operation must not exceed 80% of the declared prime power between the prescribed maintenance intervals and at standard environmental conditions.
A 10% overload is permissible for 1 hour every 12 hours of operation |
STAND-BY POWER
This is the maximum power available for a period of 500 hours/year with a mean load factor of 90% of the declared stand-by power. No kind of overload is permissible for this use.
CONTINUOUS POWER
Contact the Iveco Motors sales organization. |

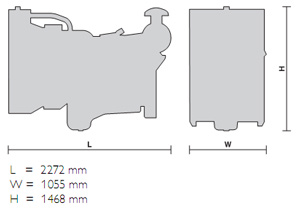

TECHNICAL DATA |
| Engine model |
CURSOR13 TE1 |
| Diesel 4 stroke - Injection |
direct, E.U.I. |
| Nb. of cylinders and arrangement |
6, in line |
| Speed governor |
electronic |
| Total displacement |
liters 12.9 |
| Bore x Stroke |
mm 135 x 150 |
| Aspiration |
turbocharged aftercooled |
| Cooling system |
liquid (water + 50% Paraflu 11) |
| Flywheel housing / Flywheel |
SAE1 / 14” |
| Flywheel rotation |
CCW |
| Lube oil specifications |
ACEA E3 - E5 |
| Lube oil consumption |
< 0.1% of fuel consumption |
| Fuel specifications |
EN 590 |
| Oil and filters interval for replacement |
hours 600 |
| Fuel consumption at : |
RPM 1500, 1800 |
| 100% load l/h (g/kWh) |
61.3 (188.8), 72.2 (202.0) |
| 80% load l/h (g/kWh) |
50.6 (194.8), 59.4 (207.9) |
| 50% load l/h (g/kWh) |
33.8 (208.2), 39.7 (222.3) |
| Coolant capacity: |
engine only liters ~ 19.5 |
| |
engine + radiator liters ~ 67 |
Lube oil total system capacity including
pipes, filters etc. : |
liters ~ 35 |
| Starting batteries : |
Ah 2 x 185 |
| |
discharge current (EN 50342) A 1200 |
| Cold starting : |
without air preheating °C -10 |
| |
with air preheating °C -25 |
| Engine dry weight |
kg 1180 |
|
SCOPE OF SUPPLY |
Iveco Motors engine CURSOR13 TE1 equipped with :
- Mounted radiator incorporating air-to-air charge cooler.
- Front radiator guard.
- Oil drain pump.
- Mounted belt driven pusher fan.
- Fan guard.
- Mounted air filter with replaceable cartridges.
- Fuel filter.
- Primary fuel filter/water separator.
- Replaceable oil filter.
- Electronic engine control unit, pump injector units with wiring loom and sensors.
- Box relais.
- WT and OP sensors for gauges.
- HWT and LOP sensors.
- Front engine mounting brackets.
- Flywheel housing SAE 1 and flywheel 14”.
- Re-directable exhaust gas elbow.
- Recirculed oil breather system.
- Oil dipstick.
- 24 Vdc electrical system.
- User’s handbook.
THE ENGINE IS SUPPLIED WITHOUT LIQUIDS.
|
|
|
OPTIONAL EQUIPMENT |
On request the engine can be supplied with :
- 230 Volt water jacket heater.
- Turbo and exhaust gas guards.
- Exhaust gas flexible joint.
- Low water level sensors. |
|
|
